The front of this tank bows inwards.

Tank Size - custom trapezoid shape.
45.5” Long front panel w/1.5” concave bend - 46.3” Long rear panel
16” Wide left side - 25” Wide right side
30” Tall, ‘mitered’ corners - 6” x 6” Internal Overflow

Filtration - "Euro-Fil" w/ micron bag

Pump(s) -Quiet One / Filter Circulation.
(2) Quiet One / Internal Circulation

Protein Skimmer - EuroReef

Lighting - Two 250 watt 10,000K Metal Halide
Two 36" VHO Actinic flourescents

Additional Equipment - 1/3 HP 'Micro' Chiller and dual Seaswirls

Placement - Custom African Mahogany cabinet

Note ( below ) Seaswirl oscillation units in both rear corners.
Each unit is driven seperately by a 1200 gph Quiet-One pump

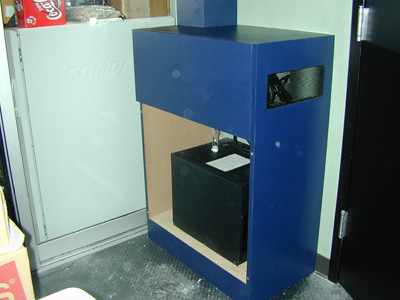

1/3 hp 'micro' chiller unit is placed within a special cabinet in a room behind the tank. The cabinet also contains the lighting ballasts. An exhaust fan draws air through the cabinet removing the heat from the chiller and ballasts and discharges it into the attic.

Interior of tank after four months ( livestock and service provided by Marine Resources ). Note Rose Anemone in upper right.
